70 / 80 / 90 / 100

Built to last, and simple to use

Tractor XE Stage IIIB - Huerlimann Tractors

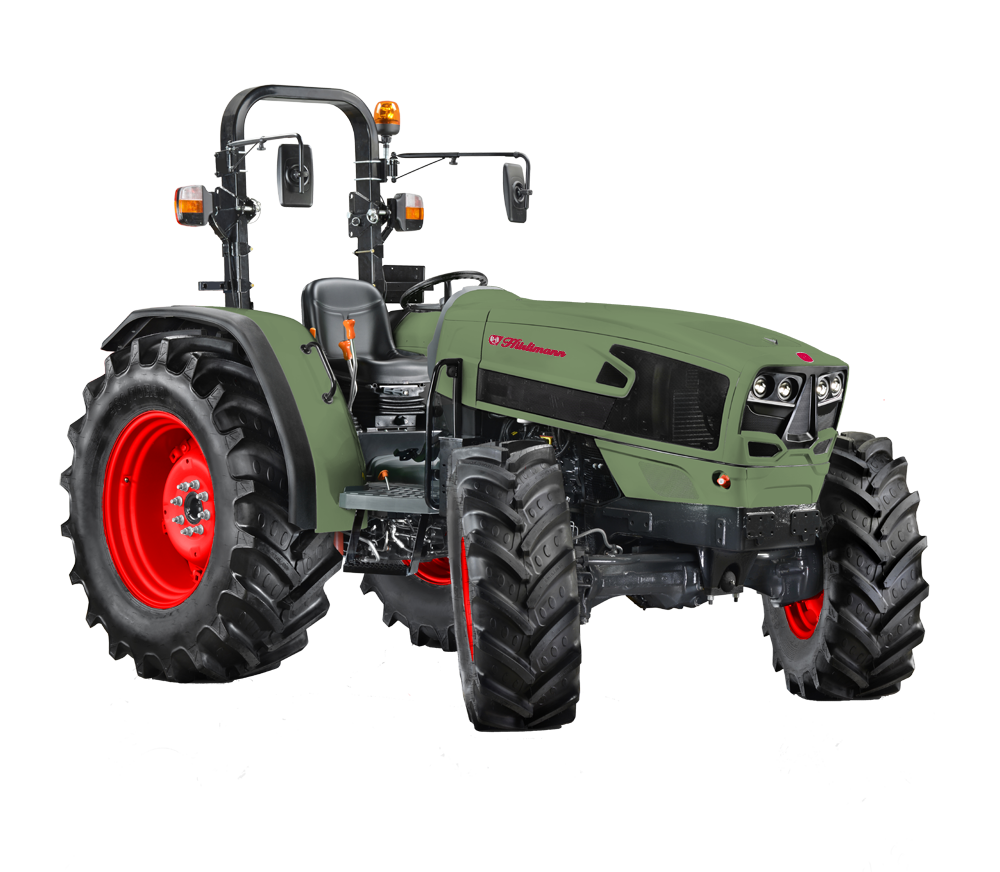

The new Hürlimann XE range comprises four models, all of which are equipped with highly advanced FARMotion engines. They are available with power outputs from 65 to 97 hp to make even better use of the excellent manoeuvrability already offered by these tractors. The tractors' braking system and trailer braking system are also new; both already comply with the latest safety regulations.

The FARMotion engine was developed specifically for agricultural applications. The unit powering the XE 80 offers an impressive torque reserve of 43%, while the engine in the XE 100 delivers 97 hp (71 kW) at just 2,000 rpm. They employ a common rail system with pressure of up to 2,000 bar, a turbocharger plus intercooler and wastegate valve, and a viscous-drive fan. They comply with Stage III B in terms of emission reduction exclusively thanks to their use of the DOC catalytic converter. These are the key features that make the FARMotion an extremely technically advanced engine. A 75 litre fuel tank lets these tractors work for long hours on end, while the 8” PowerCore intake air filter (also available with dust ejector) and oversized radiator pack ensure extended service intervals.

The superlative efficiency which is typical of a mechanical transmission is available in two variants. The first, with a top speed of 30 Km/h, features a 4 speed gearbox and is available in configurations with 12+3 speeds or 8+8 ECO speeds. The second uses a five-speed transmission with three ranges (15+15 speeds or 15+15 ECO speeds) and achieves a top speed of 40 km/h, even in the engine's eco mode (1,800 rpm). In the lowest ratio available, the tractor moves at a ground speed of just 298 metres/hour at maximum engine speed. Both front wheel drive and the front and rear differential locks are operated electrohydraulically as standard on 40 Km/h versions. For safety and reliability even in the rice paddy, these tractors are equipped with special watertight seals.

The combination of a high-performance rear power lift (with a maximum lift capacity of 2,500 kg at the lower link end, which can optionally be increased to 3,500 kg), the PTO output shaft which can be supplied with up to three speeds (540/540 ECO/1000) and a hydraulic system with maximum flow rates of 42 or 50 l/min (up to six mechanical outlets) makes the new XEs versatile tractors that are capable of handing a wide variety of agricultural applications. A dedicated gear pump, fitted as standard, ensures impeccably smooth hydraulic steering action, even at minimum engine speed.

The new operator seat is now even more comfortable with a lower profile centre tunnel, while the controls, featuring the tried-and-tested Hürlimann colour scheme, are even more practical and simple to use. The new digital instrument cluster integrated in the dashboard provides the driver with complete, clear and immediately legible information relative to the state and functions of the tractor. A two-pillar rear roll-bar is available to protect the driver. This may also be fitted with a practical optional sun shade. The ring-shaped modular ballasts for the rear wheels (optional) can be used to add up to an additional 360 kg. They can be attached to the front wheels in a "suitcase shape" for a total of up to 240 kg (+ 20 kg for the ballast bracket).
